ZB 1450CT-550S/ZB 1200CT-450S Single-Sheet Fully Automatic Handbag Bag Making Machine Produces High-Quality Finished Products
Description
The CT-S single-sheet paper bag machine is a high-efficiency, fully automatic paper bag machine independently developed and produced by our company in 2016. This machine adopts servo system for top reinforced card taking , realize the top reinforced card paste position adjustable . New "Half-blade”device ensure bag body trackless.Adopts with PLC and Servo control system , reserve of extensible intelligent port for future system upgrade sand remote services.
The basic working flow is sheet feeding , creasing , servo top reinforced card taking and pasting , top folding ( insert pasting ) , tube forming , gusset forming , bottom open and gluing , bottom folding and closing ,compaction and output.
All these steps increase the bag making efficiency and reduce the setup time , save a lot of labor cost for top reinforced card pasting Realize automation and intelligent production requirement .

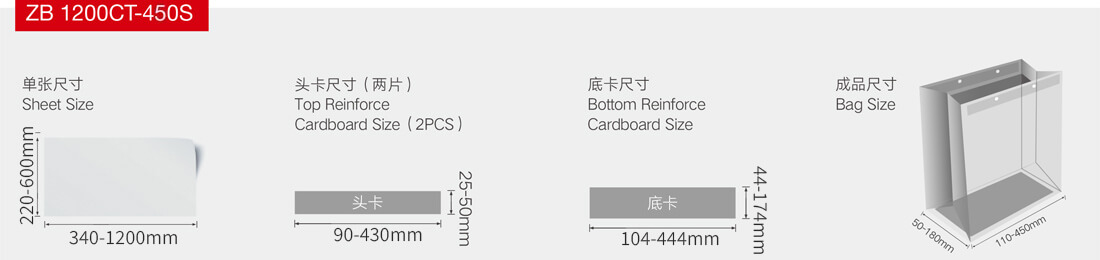

The ZB1200CT-450S has a bottom card placement length range of 104mm to 444mm and a width range of 44mm to 174mm, matching the size range of paper bags it can produce. It is capable of producing most large paper bags available on the market. The head card size ranges from 90mm to 430mm in length and 25mm to 50mm in width.

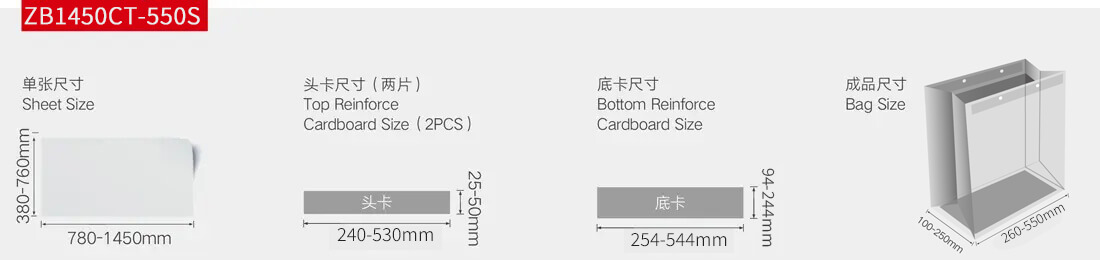

The ZB1450CT-550S has a bottom card placement length range of 254mm to 544mm and a width range of 94mm to 244mm. The head card size ranges from 240mm to 530mm in length and 25mm to 50mm in width. This model is primarily used for producing giant luxury and premium paper bags.
| standard configuration | Insert pasting | option 1 | option 2 | option 3 |
|
Automatic Top Reinforced cardboard pasting(2 pcs),Top Folding, Bottom cardboard Inserting, square Bottom. |
|
Top Reinforce cardboard( F ) | pre-punch | split Bottom (T) |
|
|
 |
Main Technical parameters
| Sheet | Max.Sheet (LXW) | mm | 1450x760 |
| Min.Sheet(LXW) | mm | 780x380 | |
| Sheet Weight | g/m² | 170-250 | |
| Bag | Top Folding Depth | mm | 30-60 |
| Bag Tube Length | mm | 350-730 | |
| Top Reinforced | Paper Weight | g/m² | 200-500 |
| Paper Length | mm | 240-530 | |
| Paper Width | mm | 25-50 | |
| Bottom Cardboard | Weight | g/m² | 250-400 |
| Width | mm | 94-244 | |
| Length | mm | 254-544 | |
| Machine | Speed | 40-70bags/min | |
| Machine Size(LxWxH) | mm | 25000x6000x1800 | |
| Total/Production Power | kW | 57.5/34.5 | |
| Voltage | V | 380 | |
| Total Weight | T | 22.2 |
| Sheet | Max.Sheet (LXW) | mm | 1200x600 |
| Min.Sheet(LXW) | mm | 340x220 | |
| Sheet Weight | g/m² | 110-300 | |
| Bag | Top Folding Depth | mm | 30-60 |
| Bag Tube Length | mm | 190-570 | |
| Top Reinforced | Paper Weight | g/m² | 200-500 |
| Paper Length | mm | 90-430 | |
| Paper Width | mm | 25-50 | |
| Bottom Cardboard | Weight | g/m² | 250-400 |
| Width | mm | 44-174 | |
| Length | mm | 104-444 | |
| Machine | Speed | 40-90bags/min | |
| Machine Size(LxWxH) | mm | 21500x6000x1800 | |
| Total/Production Power | kW | 52.5/31.5 | |
| Voltage | V | 380 | |
| Total Weight | T | 21.8 |
