ZB 1450CT-550/ZB 1200CT-450 Single-Sheet Fully Automatic Handbag Bag Making Machine Sets New Production Standards

ZB 1450CT-550/ZB 1200CT-450 single-sheet fully automatic handbag bag making machine (independent invention) introduces internationally advanced production technology and management system. The humanized intelligent operation interface, combined with PLC and servo control system, makes the machine's technical performance and production efficiency at the internationally advanced level. It took the lead in pioneering high-speed automated bag making production. The machine uses a servo head card to realize the up and down adjustment of the head card position; the new half-knife function realizes the process of making the bag body traceless.
paper : Art paper,special paper, Ivory Board paper. over 190g/听 paper Need Die-cutting In Advance

    Description

    The CT series single-sheet feed paper bag machine was independently developed and produced by Zenbo in 2016. This series of equipment features modular combinability and strong expandability. Based on the functionalities it possesses, the series can be customized with functions such as intelligent full servo control function(E model), split bottom (T model), four-piece top reinforced card (F model), and insert bottom cardboard(S model), meeting the production needs of various luxury bags and high-quality boutique bags. Since its development, the CT series has undergone numerous adjustments and refinements, continually improving its reliability and stability through serving many global first-tier famous brands, proving its endurance over time.

    The ZB1200CT-450 machine primarily produces  paper bags with a finished length ranging from 110mm to 450mm and a gusset width ranging from 50mm to 180mm. It corresponds to the size range of bags this model can manufacture, capable of producing most large boutique paper bags available on the market. The top reinforced card size ranges from 90mm to 430mm in length and 25mm to 50mm in width.

    The ZB1450CT-550 machine primarily produces huge paper bags with a finished length ranging from 260mm to 550mm and a gusset width ranging from 100mm to 250mm. The top reinforced card size ranges from 240mm to 530mm in length and 25mm to 50mm in width.
    standard configuration Insert pasting option 1

    Automatic Top Reinforced cardboard pasting(2 pcs),Automatic Top Folding,square Bottom.

    zb1450cl9a
    Top Reinforce cardboard(F)
    ZB1200CT-430 (4)jbw

    Main Technical parameters

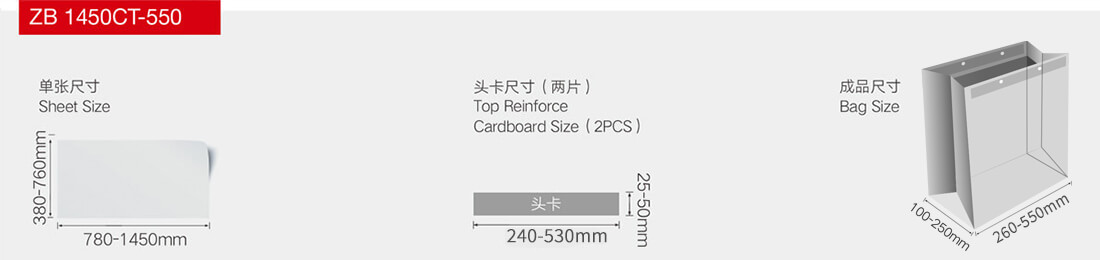

    zenbo ZB1450CT-550产品详情
    Sheet Max.Sheet(LXW) mm 1450x760
    Min.Sheet(LXW) mm 780x380
    Sheet Weight g/m² 170-250
    Bag Top Folding Depth mm 30-60
    Bag Tube Length mm 350-730
    Top Reinforced Paper Weight g/m² 200-500
    Paper Length mm 240-530
    Paper Width mm 25-50
    Machine Speed   40-70bags/min
    Machine Size mm 23200x3630x1800
    (LxWxH)
    Total/Production Power kw 39.8/24
    Voltage V 380
    Total Weight T 21.4

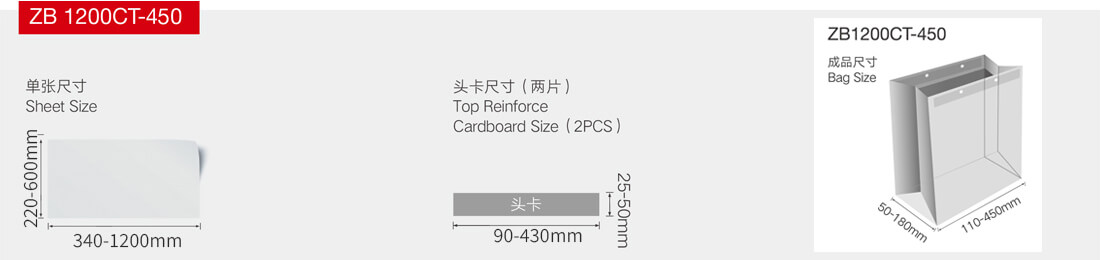

    zb1200ct-450
    Sheet Max.Sheet(LXW) mm 1200x600
    Min.Sheet(LXW) mm 340x220
    Sheet Weight g/m² 110-300
    Bag Top Folding Depth mm 30-60
    Bag Tube Length mm 190-570
    Top Reinforced Paper Weight g/m² 200-500
    Paper Length mm 90-430
    Paper Width mm 25-50
    Machine Speed   40-90bags/min
    Machine Size mm 21000x3500x1800
    (LxWxH)
    Total/Production Power kw 30.5/18.3
    Voltage V 380
    Total Weight T 17.9



    ZB1200CT-430 (5)n06

    ZB1200CT-430

    ZB1200CT-430rqc 65dff9c46k
